LED DOWN LIGHTCOB

LED Recessed Downlight

Category ：LED DOWN LIGHTCOB
Brand ：YSHANG
Model number ：L020 series
Dimension ：
Contact Us

400lm 560lm 720lm 960lm 1200lm Spot Light Indoor Lighting New Design Adjustable Dimmable LED Recessed Downlight

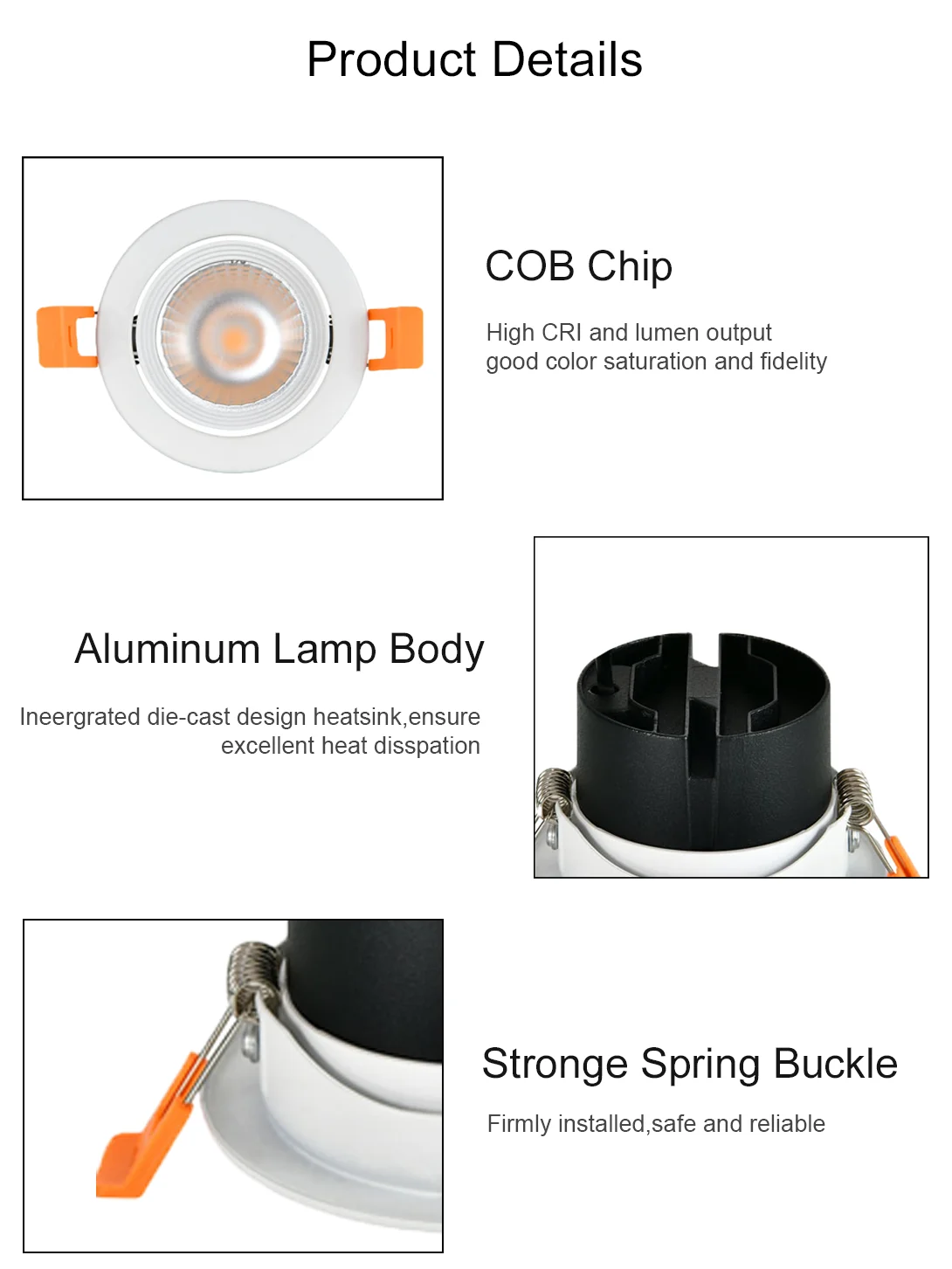

Product Features:1. DOB/COB+external drive is optional, CRI ＞ 80/90. High light efficiency and uniform light output; 2. National standard aluminum die-casting radiator to ensure good appearance and full heat dissipation; 3. Secondary optical design, 24 ° , 36 ° optional; 4. DOB and external drive are optional, and various dimming drives and intelligent systems can be selected to meet various use needs; 5. Serialized products, tapping Ф 55、 Ф 75、 Ф 95, power coverage 5-15W; 6. The service life of the whole lamp is 35000 hours.

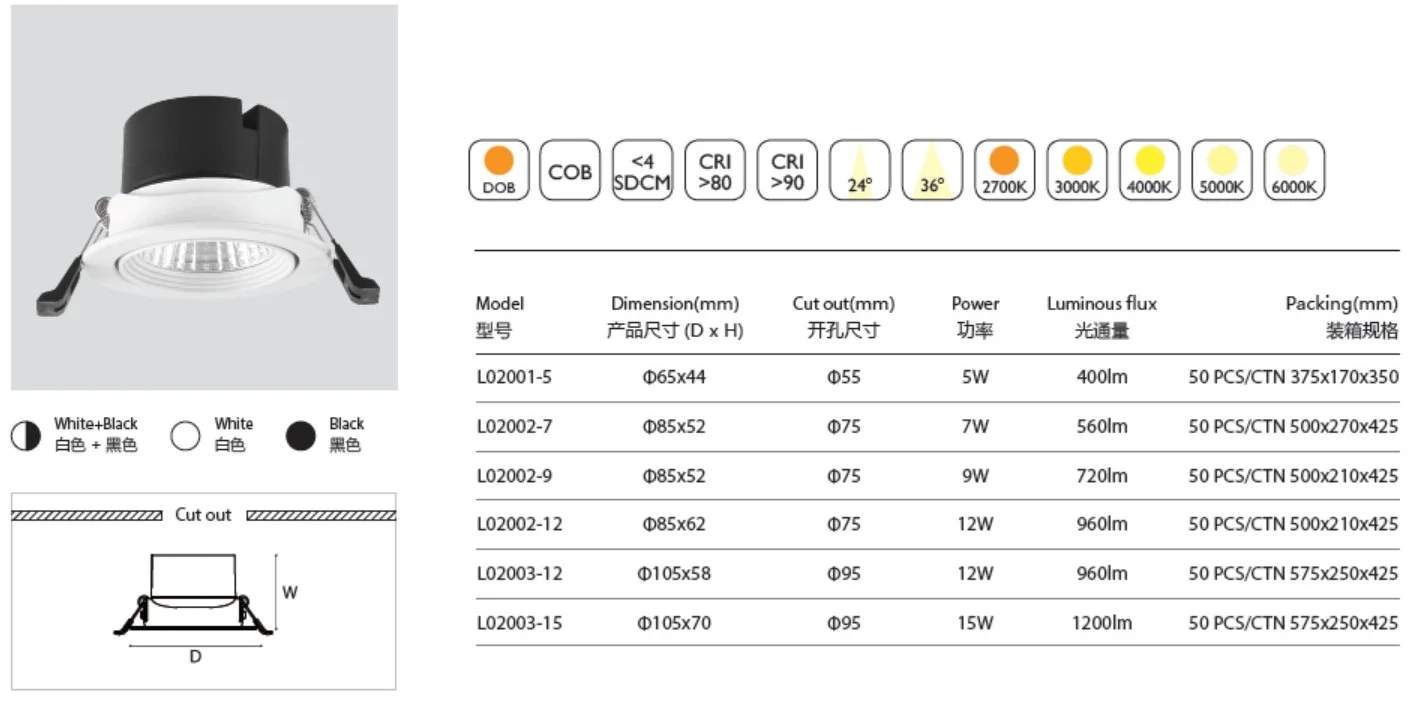

Model	Dimension(mm)	Cut out(mm)	Power	Luminous flux
L02001-5	65*44	55	5W	400lm
L02002-7	85*52	75	7W	560lm
L02002-9	85*52	75	9W	720lm
L02002-12	85*62	75	12W	960lm
L02003-12	105*58	95	12W	960lm
LO2003-15	105*70	95	15W	1200lm
Material	Aluminum+PC+Iron
Input Voltage	AC220-240V 50~60Hz
CRI	Ra>80/Ra>90
Beam Angle	24/36 degree
LED Chip	COB/DOB
Housing Color	White / Black
Certificates	CE/SAA/SASO/RoHS/CB
